2003 Performance Cruising 34' (10.36 m) 105 MC
Port Charlotte, Florida, United States
With 3 decades of experience the builders of the Gemini 105MC have produced a tried and tested, modestly sized, family cruising vessel with more stowage space and room to live aboard, than anyone might expect of a vessel of this size. The Gemini 105MC is an ideal choice of vessel weekend sailing and
- Fiberglass Hull
- HIN/IMO: PC100800A303
In Stock: Yes
LOA: 34' (10.36 Meters)
Type: Sail- Used
Documented Year: 2002
Fuel Type: Diesel
Hull Material: Fiberglass
Hull Shape: Catamaran
Designer: Tony Smith
Builder: Performance Cruising
Tender Registration: XM042095H708
Tender Title: 10197512B
Photos click to view all
GEMINI 105 MC 2003
Gemini 105 Mc,Trinity, hull no.800, 2003 Miami Boat Show model. USCG Documented vessel No. 1137369
With 3 decades of experience the builders of the Gemini 105MC have produced a tried and tested, modestly sized, family cruising vessel with more stowage space and room to live aboard, than anyone might expect of a vessel of this size. The Gemini 105MC is an ideal choice of vessel for the weekend sailor but is also an ideal candidate to take that Sabbatical to the islands we all dream of. She is an easy to sail vessel and houses enough room for the whole family.
One owner since 2003 Continuously maintained and improved with records.
Located: Charlotte Harbor Boat Storage, Placida FL.
239 898 9444, jessop7@Juno.com
Full isinglass cockpit enclosures (new condition)
Full cockpit screen enclosures (new condition)
Hammock Seat with custom easy removal feature
Wave Rider bow seats
Screecher, Genoa, Fully battened Main
Standing Rigging replaced Feb 2018
New Lexan windows 2021
Prop Guard on Silette Drive. (Crab pot protection)

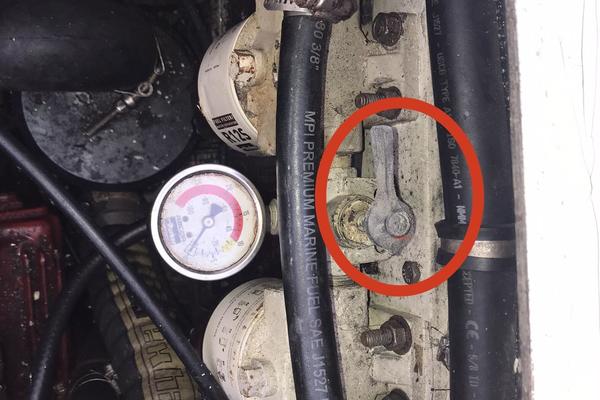

Dual switchable Racors on fuel line. Emergency filter swap.
Lofrans Windlass, Large open frame Cleats on bow, extra cleats on stern for dinghy control.
270 Watt Solar Panel, Kyocera, KU270-6MCA, 2017
4 Optima 55AH batteries 2010 and 2016
Blue Sky Solar Boost 1524iX MPPT Charge Controller 2017
PROwatt Inverter 1000 watt
Dometic RM2451 Refrigerator 2007
Hulls modified to eliminate wave slapping noise at anchor
4 Anchors with chain and 1/2 in nylon rode flaked in buckets for fast deployment
Delta 35 lb. Plow On Bow Roller, 50 ft. of 5/16 BBB chain, 200 ft nylon rode
Bruce 22 lb. In Anchor Locker with chain and rode
35 Lb CQR hinged plow with chain and rode in sail locker
25 Lb. Danforth with chain and rode in sail locker
300 ft of 1/2” nylon line in 4 coils for mangroves
AB 10.5 ft RIB with 3.5 hp Mercury 2 cycle motor
Dinghy Chaps in Coast Guard Orange
Davits have 6 part blocks with cam cleats for easy lifting
Garmin. GPSmap 541s
VHF Standard Horizon GX2150
ICOM M7000 PRO. Short Wave radio (not connected)
Sirius XM receiver
Spare Parts and Tools on Board
Main Sail cover (new)
Stilette yoke (used)
Spare Steering cables, port and starboard (new)
Silette Drive Leg Parts kit, includes spare rubber bellows.
Raw water parts, impellers, zincs, gaskets, end bells for exchanger,
Fuel Polishing tool, electric fuel pump, water separator, wand, etc.
Oil change Kit: hand pump with threaded fitting, hose
Steering system: oil infuser tool for cables
Yoke pin removal tool. engine alignment tools
Grease gun, manual, for Silette maintenance
Fenders, Fender Boards, Mounted Gusher Manual Pumps, one large one small. Rain tent, Foldable wheeled carrier, 4, 20 lb. Propane tanks, Firdell Blipper Radar Reflector, Marriage Saver intercom headsets,
· (OPENING PARAGRAPH): A short overview of the boat that tries to “hook” the MLS browser into wanting to learn more.
· MECHANICAL, ELECTRICAL AND PLUMBING (a list of items that fall into this category, engines, air con, generators, invertors, water heaters, water makers, etc.)
· HULL, DECK, RIGGING AND SAILS (gear on deck, in cockpit, canvas, winches, windlass, anchors, sail inventory, etc.)
· NAVIGATION, COMMUNICATION AND ENTERTAINMENT (self explanatory)
· SAFETY AND CONVENIENCE (flares, PFD’s, microwave, trash compactor, spares, etc.)
Some items may fall into more than one category, so I list them in both places (in case someone is only looking at the one spot for gear).
Our cruising with TRINITY over the past 20 years has mainly been around South Florida, although we did make a trip up to the Chesapeake Bay early on. We spend a lot time on anchor or mooring balls and are rarely in marinas. The boat is stored on land during the summers. I designed the dual switchable fuel filter assembly to overcome the problem of filter plugging in rough conditions such as high speed wakes stirring up sediment in the fuel tanks. The fuel polishing device was designed to remove water and sediment from the fuel tanks. It’s electric fuel pump plugs into a cigarette lighter receptacle and has an on-off switch on the device. The semirigid wand is pushed down the fuel tank fill pipe. A bulb pump in line primes the fuel pump, fuel is returned to the tank after passing through a water separator. Bubbles of water are visible in the clear tubing allowing you to move the wand to the most productive location in the fuel tank. By the way, the fuel pump on the polisher can replace the engine lift pump in case of failure.
Anchoring improvements include the manual windlass with which I can maintain adjustable tension on the anchor chain as it is being deployed with the boat in reverse. To pull the anchor I usually pull the chain in by hand as Linda motors forward, until almost over the anchor. Then I use the windlass to tension the chain. Finally I attach the permanent chain hook which is attached to the anchor cleat, slack off the windlass, then Linda throttles up over the anchor breaking it out. Then the windlass pulls the anchor onto the bow roller and the chain hook is reattached to the chain and the anchor is securely tied down. The manual windlass is light weight without requiring bow mounted batteries or switches.
While sleeping aboard at anchor I would be aware of small waves slapping the hull. Any change in the noise would wake me up. I modified the hulls to deflect the wavelets and quiet the boat. These features are labeled “Wave slap silencers” in the photos.
I replaced the original smallish bow cleats with large bow cleats to facilitate the bridle on the anchor rode. The bridle lessens the tendency of the catamaran to tack back and forth in a breeze. I use a large wood pin to attach the bridle to the nylon rode. This arrangement is much easier and quicker to detach than knotting the bridle to the rode. The original bow cleats were moved to the stern to attach dinghy lines which keep the dinghy stable in good sailing weather.
The sail locker and the port and starboard lazarettos, as built, have plywood floors painted with gel coat. I bonded fiberglass over the gel coat to protect that floor from leaking into the living spaces. I have painted the insides of hatches and covers to make mold cleaning much easier. The cockpit floor is covered with Dri-Dek tiles which keep footing secure even when rain or seas are wetting the cockpit. They also keep leaves from plugging up the cockpit drains during lay-up.
We carry extra diesel fuel in five, 5 gallon containers stored in the lazerettes. The containers allow us to transport fuel to the boat without having to move to a fuel dock. We also use the containers to filter the diesel into the main tanks through a Baja filter. We use a 4 part block and tackle off the boom to raise the container and fuel is siphoned into the filter. No fuel dock fuel goes into the tank without being Baja filtered. I use an aluminum bar as a fuel gage since the factory gages never worked. The bar Is painted for easy reading. The calibration is 1.66 gallons per inch of level. 10.5 inches is full.
I have custom designed lower-able screens on the windows on each side of the cabin door. All the screens are no-seeum proof, a real necessity when anchoring in unpopulated areas like Little Shark River.
The original Dometic refrigerator failed and was replaced in Dec. 2007. In Dec. 2013 The fan over the cooling coils failed. I replaced the noisy cobbled up fan with two computer fans connected in series, which draw 0.19 amp. More air flow, less noise and power drain.
I have a port and a starboard steering cables as spare parts. There is a description how to maintain and lubricate steering cables. Special tools are included and described.
The original 2 solar panels have been replaced with a single full width Kyocera 270 watt panel. A Blue Sky Solar Boost MPPT Charge Controller 1524iX efficiently charges the 4 AGM batteries. LED lights have replaced the original main salon lights. More light for less power.
And on and on.
